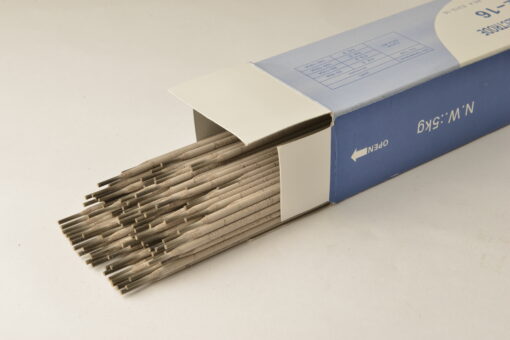

E308L-16

Send Inquiry

Approved by: NONE

Description： E308L-16 was developed for welding 304L. This electrode deposits a maximum of 0.04% carbon in the weld metal. Type 308L-16 is used extensively for welding of chemical plant equipment and may be used successfully for welding types 321 and 347 steel grades. E308L-16 minimizes the formation of chromium carbides in the weld metal.

Comply to GB/T 983 E308L-16, equivalent to AWS A5.4 E308L-16

Instruction

The E308L-16 is super-low carbon Cr19Ni10 stainless steel rod of titanium-calcium coating, with deposited metal having a carbon content of not more than 0.04%. It has good corrosion-proof performance. Sound operating and processing performance is used for both AC and DC.

Application

Use it for welding super-low carbon Cr19Ni10 stainless steel structures. Also use it for welding corrosion-proof 0Cr19Ni11Ti stainless steel structures under a working temperature of less than 300℃. Use it mainly for the manufacturing of equipment for synthetic fiber, fertilizer and oil etc.

Deposited metal composition (%)

Alloy wt%	C	Mn	S	Si	P	Cr	Ni	Mo	Cu
Standard	≤0.04	0.5-2.5	≤0.030	≤1.00	≤0.040	18.0-21.0	9.0-12.0	≤0.75	≤0.75
e.g.	0.021	0.72	0.005	0.62	0.020	19.22	9.75	0.13	0.25

Mechanical properties of deposited metal

Mechanical properties	Tensile Strength (Rm) Mpa	Elongation (A)%
Standard	≥510	≥30
e.g.	610	41

Reference current (AC or DC⁺)

Dia. (mm)	Ф2.0	Ф2.5	Ф3.2	Ф4.0
Current(A)	25-50	50-80	80-110	110-160

Notes:

The welding rod must be baked at about 150℃ for one hour before welding.
DC shall be used as The current shall not be significant to prevent the welding rod from turning red.
