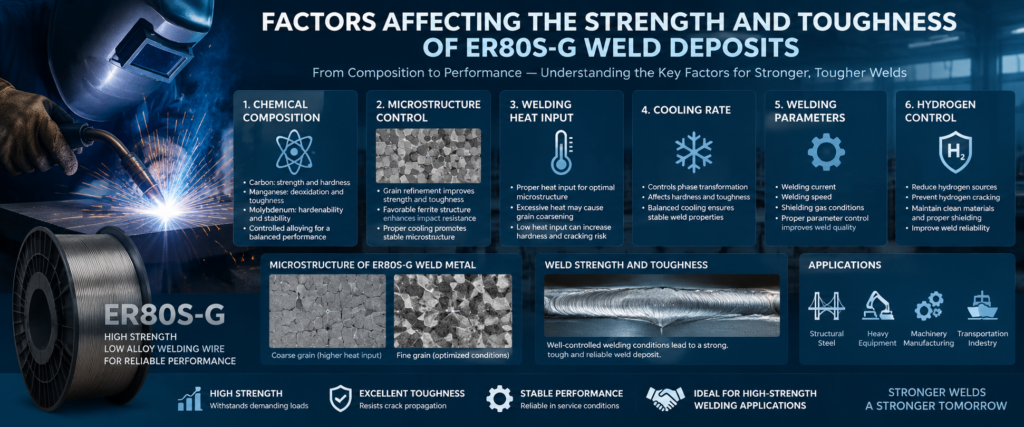

Factors Affecting the Strength and Toughness of ER80S-G Weld Deposits

ER80S-G is a high-strength low-alloy (HSLA) solid welding wire designed for producing weld deposits with a balance of strength, toughness, and weld reliability. The mechanical performance of ER80S-G weld metal is not determined only by the filler metal composition. Instead, it is the result of complex interactions between alloy chemistry, welding thermal cycles, microstructure evolution, and processing conditions.

For high-strength welded structures, achieving both strength and toughness is critical. Excessive hardness may increase crack sensitivity, while insufficient strength can reduce structural reliability. Therefore, controlling metallurgical factors during welding is essential for obtaining stable ER80S-G weld performance.

The major factors influencing ER80S-G weld deposits include:

  • chemical composition

  • microstructure development

  • grain refinement

  • alloy strengthening mechanisms

  • heat input and cooling rate

  • welding parameters

  • hydrogen control

Understanding these factors helps engineers optimize welding procedures and maximize the performance of ER80S-G weld joints.

1. Influence of Chemical Composition on ER80S-G Weld Strength and Toughness

The chemical composition of ER80S-G plays a fundamental role in determining weld metal properties.

Unlike conventional carbon steel welding wires, ER80S-G utilizes controlled alloying elements to improve mechanical performance. The interaction between alloying elements affects:

  • weld strength

  • hardness

  • toughness

  • crack resistance

  • microstructural stability

A carefully designed alloy system allows ER80S-G weld deposits to achieve higher strength while maintaining adequate ductility.

1.1 The Role of Carbon in Weld Hardness and Strength

Carbon is one of the most important strengthening elements in steel weld metal.

Increasing carbon content can improve:

  • tensile strength

  • hardness

  • wear resistance

However, excessive carbon may negatively affect weld toughness by increasing brittleness and reducing resistance to cracking.

Therefore, ER80S-G requires controlled carbon levels to maintain a balance between strength and toughness.

The objective is not simply to maximize hardness, but to develop a stable weld structure with sufficient deformation capability.

1.2 The Effect of Manganese on Weld Performance

Manganese is an important alloying element in ER80S-G weld deposits.

Its main functions include:

  • improving strength through solid solution strengthening

  • enhancing deoxidation

  • refining weld microstructure

  • improving toughness

Manganese also influences transformation behavior during cooling, helping develop favorable ferritic structures.

A proper manganese level contributes to stronger and more reliable weld deposits.

1.3 The Contribution of Molybdenum to Strength and Stability

Molybdenum is widely used in low-alloy welding materials because of its ability to improve high-strength performance.

Mo contributes through:

  • increasing hardenability

  • strengthening the ferritic matrix

  • improving resistance to thermal softening

  • enhancing microstructural stability

The presence of molybdenum helps ER80S-G maintain mechanical properties after exposure to welding thermal cycles.

2. Microstructure Control and Its Effect on Weld Properties

The final microstructure of ER80S-G weld deposits directly determines mechanical performance.

The relationship can be summarized as:

Alloy Composition → Cooling Process → Microstructure → Mechanical Properties

During welding, molten metal rapidly solidifies and undergoes phase transformation. The cooling history determines whether the weld develops favorable fine structures or undesirable coarse structures.

Important microstructural features include:

  • grain size

  • ferrite morphology

  • transformation products

  • distribution of strengthening phases

2.1 Grain Refinement and Strength Improvement

Grain refinement is one of the most effective methods for improving weld strength.

Smaller grains provide:

  • higher yield strength

  • improved toughness

  • better resistance to crack propagation

Fine grains limit dislocation movement and increase resistance to plastic deformation.

For ER80S-G weld deposits, controlling solidification conditions and alloy composition helps promote refined grain structures.

2.2 Ferrite Structure and Toughness Behavior

The morphology of ferrite significantly affects weld toughness.

Fine and well-distributed ferritic structures generally provide:

  • improved impact resistance

  • better crack resistance

  • enhanced ductility

Conversely, coarse or unfavorable ferrite structures may create easier paths for crack propagation.

Therefore, controlling transformation behavior during cooling is essential.

3. Effect of Welding Heat Input on ER80S-G Performance

Heat input is one of the most important welding parameters affecting weld metallurgy.

It influences:

  • cooling rate

  • grain growth

  • phase transformation

  • residual stress development

3.1 Excessive Heat Input

High heat input may cause:

  • slower cooling

  • coarse grain formation

  • reduced toughness

  • wider heat-affected zones

Although higher heat input can improve penetration and productivity, excessive thermal exposure may reduce weld mechanical performance.

3.2 Low Heat Input Effects

Insufficient heat input may lead to:

  • rapid cooling

  • increased hardness

  • higher residual stress

  • increased cracking risk

Therefore, optimal heat input control is necessary to achieve a balanced ER80S-G weld structure.

4. Cooling Rate and Transformation Behavior

Cooling rate strongly affects the final weld microstructure.

A controlled cooling process helps regulate:

  • ferrite formation

  • hardness distribution

  • toughness level

Rapid cooling can increase hard phases and hardness, while extremely slow cooling may result in coarse microstructures.

The ideal cooling condition produces a weld deposit with:

  • sufficient strength

  • controlled hardness

  • good impact toughness

5. Influence of Welding Parameters on ER80S-G Weld Quality

The performance of ER80S-G weld deposits depends not only on material chemistry but also on welding operation.

Important parameters include:

Welding Current

Current affects:

  • penetration depth

  • melting rate

  • heat input

Improper current selection may cause unstable weld formation.

Welding Speed

Welding speed influences:

  • weld bead geometry

  • cooling behavior

  • heat distribution

Too high welding speed may reduce fusion quality, while too low speed may increase excessive heat exposure.

Shielding Gas Conditions

Shielding gas protects the molten weld pool from atmospheric contamination.

Poor shielding conditions may introduce:

  • porosity

  • oxidation

  • reduced mechanical properties

Stable shielding improves weld cleanliness and consistency.

6. Hydrogen Control and Crack Resistance

Hydrogen is one of the critical factors affecting weld cracking.

Excess hydrogen may cause:

  • hydrogen-assisted cracking

  • reduced ductility

  • premature failure

To improve ER80S-G weld reliability, controlling hydrogen sources is important.

Key measures include:

  • maintaining clean base materials

  • controlling moisture exposure

  • using proper shielding conditions

  • optimizing welding procedures

Reducing hydrogen content improves weld toughness and long-term durability.

7. Relationship Between Strength and Toughness in ER80S-G Weld Deposits

Strength and toughness are often competing properties in high-strength steels.

Increasing hardness and strength may reduce ductility if the microstructure becomes too rigid.

ER80S-G achieves performance balance through:

  • controlled alloying

  • grain refinement

  • optimized transformation behavior

  • proper welding conditions

A successful weld deposit should provide:

High Strength

Ability to withstand mechanical loading without permanent deformation.

Good Toughness

Ability to absorb energy and resist crack propagation.

Stable Performance

Ability to maintain properties during long-term service.

8. Strategies for Optimizing ER80S-G Weld Performance

To maximize ER80S-G weld strength and toughness, engineers should consider:

Optimize Alloy Composition

Maintain appropriate levels of strengthening elements while avoiding excessive hardening.

ER80S-G Control Welding Heat Input

Balance penetration requirements with microstructure control.

ER80S-G Manage Cooling Conditions

Develop favorable transformation products and avoid excessive hardness.

ER80S-G Maintain Low Hydrogen Practices

Reduce cracking risk and improve weld reliability.

ER80S-G Evaluate Microstructure

Use metallurgical analysis to understand the relationship between processing conditions and final properties.

ER80S-G Conclusion

The strength and toughness of ER80S-G weld deposits are controlled by multiple interconnected metallurgical factors. Chemical composition, microstructure evolution, grain refinement, heat input, cooling rate, and welding parameters all contribute to final weld performance.

The key to achieving reliable ER80S-G weld deposits is not simply increasing strength, but creating a balanced structure that combines:

  • high mechanical strength

  • excellent toughness

  • crack resistance

  • long-term reliability

Through proper alloy design and optimized welding control, ER80S-G can provide high-performance weld joints for demanding low-alloy steel applications.
